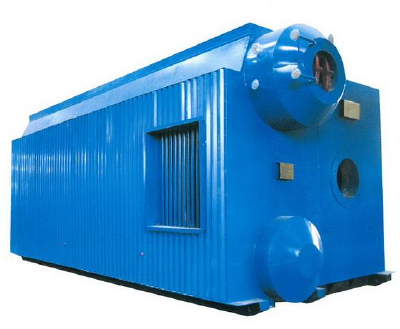

SZS series automatic gas/oil steam boiler profile
Because the combustion chamber adopts the whole mode water cooling wall structure, and adopts micro-positive pressure combustion, without the problem of smoke and smoke, the operating environment is free of pollution.
The boiler has explosion-proof door and flame detector, safe and reliable operation.
The boiler tail adopts the energy saving device, which reduces the smoke temperature, high thermal efficiency and the design efficiency is 92% above.
Furnace type horizontal arrangement, compact structure, small footprint;
The rear of the boiler is equipped with the entrance door, the rear of the boiler is equipped with the inspection door, which is convenient to open and can be used for the maintenance and cleaning of the inside and outside of the boiler.
The boiler realizes full automation, has the automatic operation and the protection function, the operation is simple.
- Place of Origin: China
- Brand Name:
- Model Number: SZS20-1.25-Y(Q)
Technical data of SZS series automatic gas-fired the steam boiler | ||||||||||||||
SZS20 | SZS25 | SZS35 | SZS40 | SZS50 | SZS65 | SZS70 | ||||||||
Rated capacity | t/h | 20 | 25 | 35 | 40 | 50 | 65 | 70 | ||||||
Rated Steam Pressure | Mpa | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | ||||||
Rated Steam Temperature | ℃ | 194/204 | 194/204 | 194/204 | 194/204 | 194/204 | 194/204 | 194/204 | ||||||
Rated Intet Temperature | ℃ | 105 | 105 | 105 | 105 | 105 | 105 | 105 | ||||||
Designed Heat Efficiency | (%) | 100.8 | 100.8 | 100.8 | 100.8 | 100.9 | 100.9 | 100.9 | ||||||
Combustion Method | Chamber Combustion | |||||||||||||
Combustion Adjustment Method | Fully Automatic Proportional Control | |||||||||||||
Suitable Fuel Type | Light diesel, natural gas | |||||||||||||
Fuel Consumption | Natural Gas | Nm3/h | 1530 | 1913 | 2678 | 3060 | 3825 | 4793 | 5738 | |||||
Light diesel | kg/h | 1270 | 1588 | 2223 | 2540 | 3175 | 4128 | 4763 | ||||||
Supply Gas Pressure | Natural Gas | mmH2O | 2000-3000 | 2000-3000 | 2000-3000 | 2000-3000 | 2000-3000 | 2000-3000 | 2000-3000 | |||||
Use the power supply | 380V/50Hz | |||||||||||||
Total equipment power | Diesel Fired | KW | 82 | 126 | 142.5 | 170.5 | 203 | 265 | 384 | |||||
Gas Fired | KW | 78 | 115 | 131.5 | 159.5 | 188 | 250 | 362 | ||||||
Feed water pump | Etec Power | KW | 30 | 37 | 37 | 45 | 45 | 75 | 90 | |||||
Circulating water pump | Etec Power | KW | 3 | 3 | 4.5 | 4.5 | 11 | 15 | 22 | |||||
Fan | Etec Power | KW | 45 | 75 | 90 | 110 | 132 | 160 | 250 | |||||
External interface | Inlet | PN Mpa | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | |||||
DN mm | 65 | 65 | 80 | 80 | 100 | 100 | 125 | |||||||
Main steam outlet | PN Mpa | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | ||||||
DN mm | 200 | 200 | 250 | 250 | 300 | 300 | 300 | |||||||
Vice steam outlet | PN Mpa | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | ||||||
DN mm | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |||||||
Periodic Blow Down Outtet | PN Mpa | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | ||||||
DN mm | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |||||||
Continuous drain | PN Mpa | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | ||||||
DN mm | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |||||||
Safety | interface | PN Mpa | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | 1.6/2.5 | |||||
DN mm | 2×100 | 2×125 | 2×150 | 2×150 | 2×150 | 2×150 | 2×220 | |||||||
Discharge port | DN mm | 2×125 | 2×150 | 2×175 | 2×175 | 2×175 | 2×175 | 2×225 | ||||||
