- Place of Origin: China
- Brand Name:
- Model Number: DZL4-1.6-A II

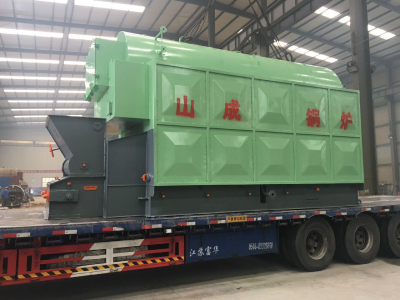

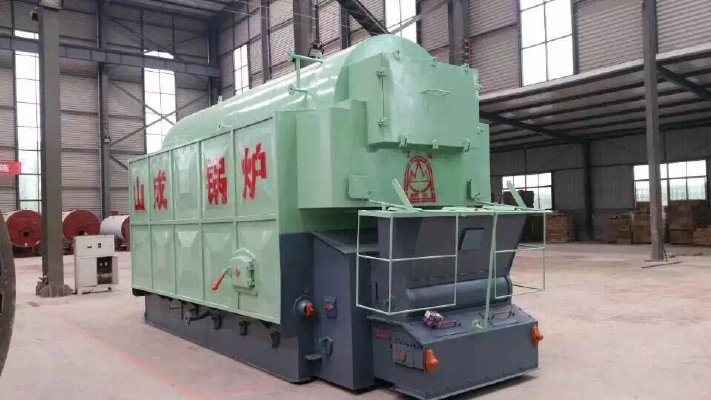

DZL series of fire tube chain grate biomass boiler
DZL series of quick-loading chain grate biomass boiler for the single-drum longitudinal chain grate boiler. Suitable for combustion of biomass fuels. Can also be pure coal or mixed coal and biomass fuel molding. Tail have economizer. Emissions of ash, slag can be used directly as fertilizer, is a highly efficient energy saving products. Equipped with a drum blower for mechanical ventilation, and equipped with a screw slag machine Hisun machinery slag, control instrumentation is complete, safe and reliable boiler operation.
- Place of Origin: China
- Brand Name:
- Model Number: DZL4-1.6-A II
Technical parameters | parameter value |
Rated outlet pressure | 1.6Mpa |
Rated steam temperature | 204℃ |
Feed water temperature | 20℃ |
Radiation heating area | 12.24m2 |
Economizer heating area | 28.16m2 |
Grate effective area | 5.18m2 |
Use of coal | AⅡ |
Coal consumption | 615Kg/h |
Design thermal efficiency | 78.45% |
Transport of the largest pieces of transport | 6.73×2.95×3.54 |
The weight of the largest transporter | 28.3t |
Drum length, thickness | Φ1400×16（L=5132） |
The number of tobacco pipe | Φ57×87root |
The number of water wall | 94roots |
